Why is Stabilization of Solder Amount Required ?
An important reason for quantitative stabilization of the solder amount is that if the solder amount varies in particular when automating, the temperature that melts the solder changes and continuous stability is lost. In terms of quality, it also causes bridges, solder sags to the backside of PCB, and a lack of solderability.
We have solved these problems with the following techniques:
How to Stabilize Solder Amount!
The H351 break tin solder wire feeding system can pierce holes when feeding solder wire, it can reduce burst tin that causes flux remaining on PCB when soldering under high temperature to improve the soldering quality. solder wire feeding accuracy can reach 0.1mm.
Many Advantages by Solder Amount Stabilization
Many advantages arise by stabilizing the solder amount, that is not only for making stable soldering.
Highly Accurate, Continuous Stability

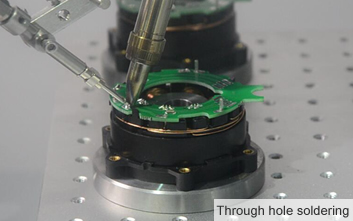

The H351 enables soldering without bridging even with fine pitch soldering.
It keeps material costs down
H351 heating element adopt silver coil which can ensure long lifetime.
soldering tip can be easliy changed with lower cost.
Far less frequency of solder balling and flux spattering
There is very little flux explosion and it results in little solder balls as well because heat expansion pressure of flux can escape from the solder cutting surface when the solder is melted.

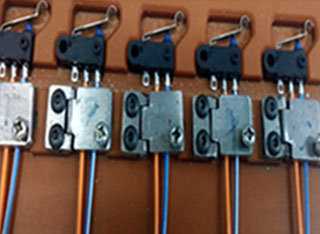

Micro switch soldering

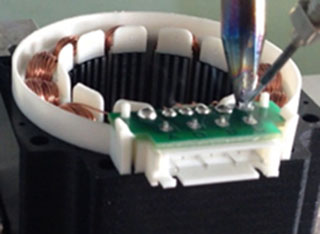

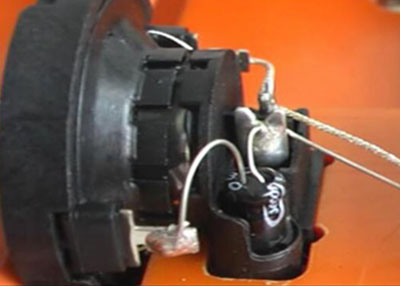

Motor soldering
[Learn more Video]
Stable Heat Supply Technology
Why Can the H351 Stabilize the sullpy of heat ?
400W high frequency induction heating system has rapid temperature recovery time. Three sections of sending tin and three sections of heating time are set in the software of the machine to ensure the stability of welding quality.
Stable Heat Supply Technology !
Automatic Soldering Robot System H351
400W high-frequency soldering iron assembly, rapid temperature recovery, temperature compensation in a short time, to ensure that the heat of the pad evenly, to ensure the soldering quality of solder joints.
Soldering Iron (Conventional Soldering Iron)
H351 equip with 400W soldering station (optional 600W soldering station). It can make soldering the component which has big heat loss such as grand pattern and shield case in a relatively short time. Comparing to conventional automatic soldering robot, the power is around twice to them.
400W high-frequency soldering iron assembly, rapid temperature recovery, temperature compensation in a short time, to ensure that the heat of the pad evenly, to ensure the soldering quality of solder joints.
H351 equip with 400W soldering station (optional 600W soldering station). It can make soldering the component which has big heat loss such as grand pattern and shield case in a relatively short time. Comparing to conventional automatic soldering robot, the power is around twice to them.
Advantages Arising from Using the High-power Heaters
Big heat loss parts are possible for soldering
H351 equip with 400W soldering station (optional 600W soldering station). It can make soldering the component which has big heat loss such as grand pattern and shield case in a relatively short time.
Big heat loss parts are possible for soldering
Comparing to conventional automatic soldering robot, the power is around twice to them.
[Learn more Video]
Stable Soldering Tip Technology
Stabilization of the H351'S Soldering Tip !

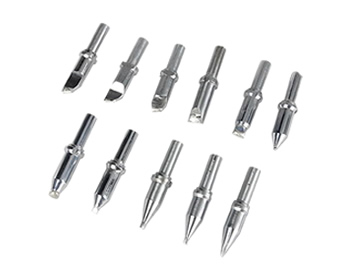

Various soldering tips can meet different process requirement. Customized solering tips is also available. Heating core and soldering tip are separate individuals. Heating element adopt silver coil which can ensure long lifetime. Induction type soldering tip can be easily changed with lower cost.
The way to choose the soldering tip according to the soldering pad size (H351/H352/G351)

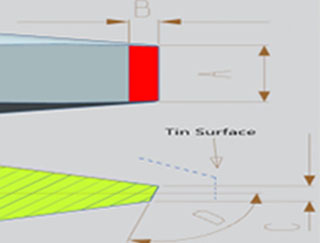

1、The width of the soldering tip is 0.5-1mm larger than the diameter of the soldering pad. (In below picture, the red color is the soldering tip tinned surface. Please look at the A in below picture,it is the width of the soldering tip)
2、When soldering the pad, ensure that the head of the soldering tip cannot touch adjacent other pads.
3、If we need to use only one kind of soldering tip to solder different size of the soldering pad for one PCB. The diameter of the largest solder pad must less than twice the diameter of the minimum solder pad.Select the soldering tip according to the max diameter of the soldering pad. The width of the soldering tip is 0.5-1mm larger than the diameter of the max soldering pad.And when soldering the smaller pad, ensure that the head of the soldering tip cannot touch adjacent other pads. (If the above requirements are not met, you will need to use two types of soldering tips to solder different diameter soldering pads.)
4、The soldering tip type of RDD and RDK, both of them can be used for point solder. (For the soldering tip type RDD can be used in point solder, it main used for the soldering pad with small pin.For the soldering tip type RDK can be used in point solder, it main used for the soldering pad with big pin). Normally we choose the height of the tinned surface is 1mm. If the pin of the pad is too big, we need choose the high tinned surface soldering tip. (Please look at the B in the picture, it is the height of the tinned surface on the soldering tip).
5、If the customer still don’t know how to choose the soldering tip, Please ask the customer send us the gerber file of the product. We need get the all pads diameter(size) and the spacing between adjacent pads for all pads on the PCB.

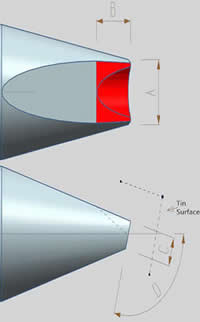

RDD Soldering tip

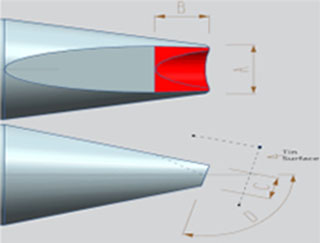

RDK Soldering tip
| Soldering tip type form -V2.0 | |||||||
| NO | Type of RDD | A(MM) | B tin height | C | D | 400W |  |
| 1 | RDD2.0-1.0-0.6-0.4 | 2.0 | 1.0 | 0.6 | 105° | 400 | |
| 2 | RDD2.0-1.0-0.6-0.4 | 2.4 | 1.0 | 0.8 | 105° | 400 | |
| 3 | RDD3.0-1.0-0.6-0.4 | 3.0 | 1.0 | 0.6 | 105° | 400 | |
| 4 | RDD3.5-1.0-0.8-0.4 | 3.5 | 1.0 | 0.8 | 105° | 400 | |
| 5 | RDD4.0-2.0-1.0-0.4 | 4.0 | 2.0 | 1.0 | 105° | 400 | |
| NO | Type of RDK | A(MM) | B tin height | C | D | 400W |  |
| 1 | RDK1.5-1.0-0.5-0.4 | 1.5 | 1.0 | 0.5 | 105° | 400 | |
| 2 | RDK2.0-1.0-0.6-0.4 | 2.0 | 1.0 | 0.6 | 105° | 400 | |
| 3 | RDK2.4-1.0-0.6-0.4 | 2.4 | 1.0 | 0.6 | 105° | 400 | |
| 4 | RDK3.0-1.0-1.0-0.4 | 3.0 | 1.0 | 1.0 | 105° | 400 | |
| 5 | RDK3.5-1.0-0.8-0.4 | 3.5 | 1.0 | 0.8 | 105° | 400 | |
| 6 | RDK4.0-2.0-1.0-0.4 | 4.0 | 2.0 | 1.0 | 105° | 400 | |

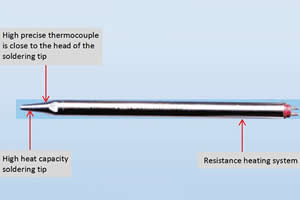

Stabilization of the I-351'S Soldering Tip
1、Variety soldering tip, meet different soldering condition.
2、The soldering tip is made in Japan. The soldering tip structure and material is the same with Appolo seiko. Appolo seiko soldering tip can also be used directly on the soldering head.
3、Resistance heating system. Direct heating method, heating up very fast.
4、Accurate temperature measurement: The high precise thermocouple is close to the head of the soldering tip. It can keep display temperature the same as the actual temperature of solder tips.
5、High heat capacity soldering tip: heating up fast, temperature stability.
6、The ability of getting tin is strong, do not oxidize. There will be no non-stick tin, no climbing tin phenomenon on the soldering tip.
7、Oxygen-free copper, high strength, good wear resistance, high temperature, lead-free alloy Iron plating dense, long service life.

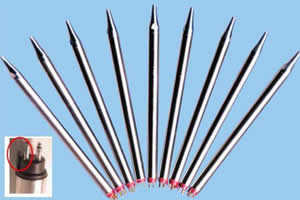

I-351'S Soldering Tip
I-351'S Soldering Tip
The way to choose the soldering tip according to the soldering pad size (I-351)

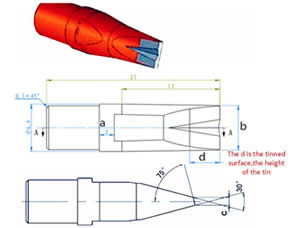

1、The width of the soldering tip is 0.5-1mm larger than the diameter of the soldering pad.(In below picture, the silver color is the soldering tip tinned surface.Please look at the b in below picture,it is the width of the soldering tip).
2、When soldering the pad, ensure that the head of the soldering tip cannot touch adjacent other pads.
3、If we need to use only one kind of soldering tip to solder different size of the soldering pad for one PCB. The diameter of the largest solder pad must less than twice the diameter of the minimum solder pad. Select the soldering tip according to the max diameter of the soldering pad.The width of the soldering tip is 0.5-1mm larger than the diameter of the max soldering pad.And when soldering the smaller pad, ensure that the head of the soldering tip cannot touch adjacent other pads.(If the above requirements are not met, you will need to use two types of soldering tips to solder different diameter soldering pads.)
4、The soldering tip type of DC48V-101-D-2 and DC48V-101-DV1-2, both of them can be used for point solder.(For the soldering tip type DC48V-101-D-2 can be used in point solder, it main used for the soldering pad with small pin. For the soldering tip type DC48V-101-DV1-2 can be used in point solder, it main used for the soldering pad with big pin) Normally we choose the height of the tinned surface is 1mm. If the pin of the pad is too big, we need choose the high tinned surface soldering tip.(Please look at the d in the picture, it is the height of the tinned surface on the soldering tip)
5、If the customer still don’t know how to choose the soldering tip, Please ask the customer send us the gerber file of the product. We need get the all pads diameter(size) and the spacing between adjacent pads for all pads on the PCB.
DC48V-101-DV1-2 RDD Soldering tip
DC48V-101-D-2 Soldering tip
| DC48V-101-D-2 | （For point solder, can only use in point solder) | |||||
| NO | Type | A(MM) | B | C | D3S | Exterior Structurs |
| 1 | DC48V-16D-2 | 4.0 | 1.6 | 0.6 | 2.0 | |
| 2 | DC48V-20D-2 | 4.0 | 2.0 | 0.6 | 2.0 | |
| 3 | DC48V-24D-2 | 4.0 | 2.4 | 0.8 | 2.0 | |
| 4 | DC48V-30D-2 | 5.0 | 3.0 | 1.0 | 3.0 | |
| 5 | DC48V-40D-2 | 5.0 | 4.0 | 1.0 | 3.0 | |
| 6 | DC48V-50D-2 | 5.0 | 5.0 | 1.3 | 4.0 | |
| DC48V-101-DV1-2 | （For point solder,can only use in point solder) | |||||
| NO | Type | A(MM) | B | C | D3S | Exterior Structurs |
| 1 | DC48V-16DV1-2 | 4.0 | 1.6 | 0.6 | 2.0 | |
| 2 | DC48V-20DV1-2 | 4.0 | 2.0 | 0.6 | 2.0 | |
| 3 | DC48V-24DV1-2 | 4.0 | 2.4 | 0.8 | 2.0 | |
| 4 | DC48V-30DV1-2 | 5.0 | 3.0 | 1.0 | 3.0 | |
| 5 | DC48V-40DV1-2 | 5.0 | 4.0 | 1.0 | 3.0 | |
| 6 | DC48V-40PC | 5.0 | 4.0 | 1.0 | 3.0 | |
[Learn more Video]
