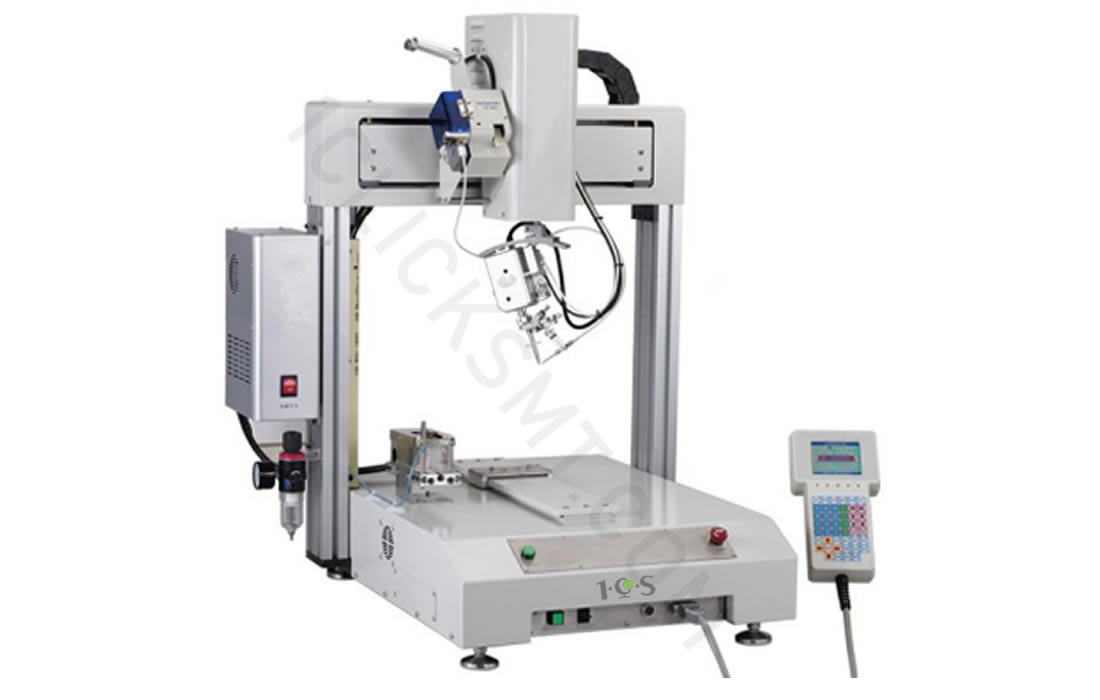

Automatic Soldering Robot System with CCD safety light

Features

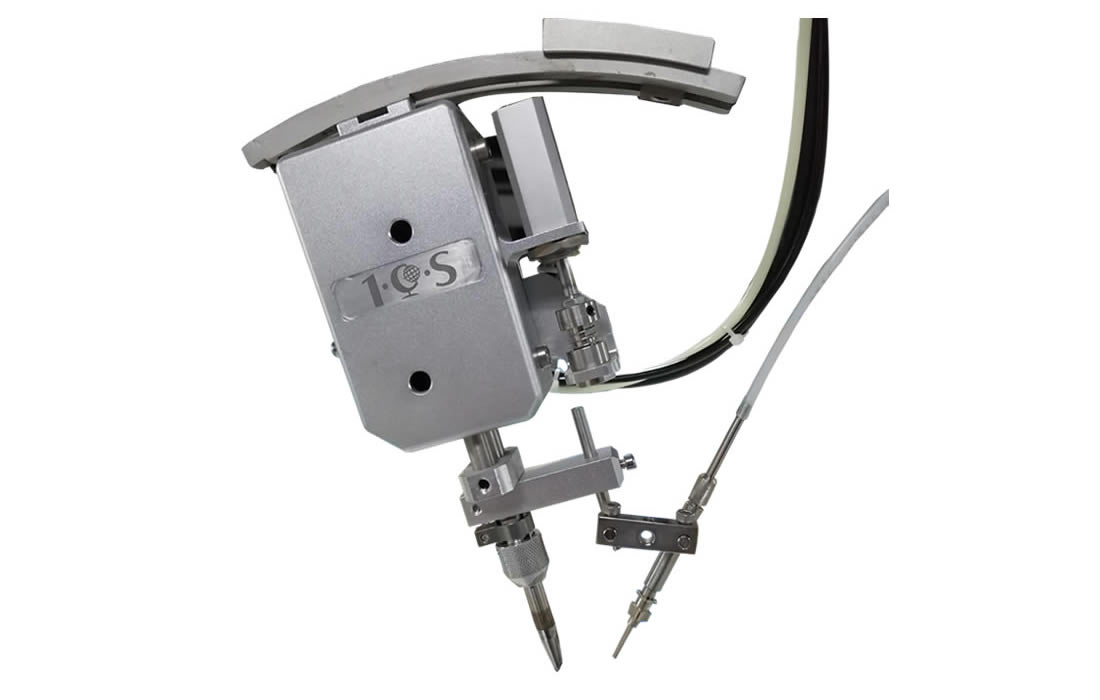

● H351 is a 5 axis soldering robot with X,Y,Z,R, and solering wire feeding motion system. It is equipped with 400W high frequency heating systerm with rapid heat recovery, soldering tip is easy to be exchange with low cost. Break-tin automatic solder wire feeder can reduce burst tin that causes flux remaining on PCB when soldering under high temperature to improve the soldering quality. Self-developed software under windows 7 English OS is easy to operate.

Specification

Model	I-351
Axes	X/Y/Z/R/wire feeder
Machine Working Range X/Y/Z/R(mm)(˚)	270300100*340
Motion speed X/Y/Z/R(mm/sec)(˚/sec)	500/500/300/180
Repeat positioning accuracy X/Y/Z/R(mm)(˚)	±0.06/±0.06/±0.06/±0.05
Program method	Teaching box
Controller	PLC+Control card
Motor	Stepper motor
Control system	PTP control ,CP control
Power	220V/50Hz
Air pressure	4~5kg/cm²
Working environment	0℃-40℃
Machine Max power	300W
Heating system power	100W
Temperature range	Room temperature~500℃
Temperature control accuracy	±2℃
Y axis load	≦6kg
Solder wire feeder	Standard 0.8mm-1.2mm feeder (optional 0.3-0.6mm feeder)
Machine weight	98KG

What options are available ?

CCD Camera

This device is a position calibration system for easy programming.
Solder Iron

Variety of sloldering irons.
Customized Fixtures

Customized carrier can improve the productivity greatly.
Fume Extractor

Effectively absorb toxic gases and provides a safe working condition.
0.3-0.6mm solder wire feeder

For 0.3-0.6 soldering wire.
